Live Capability Demonstration / 3D Asset Operations

AO Bake: Intake To Submission

One idea from Ed’s capability menu, exercised for real. I created a representative user input, processed it through Blender, baked a 1024×1024 ambient-occlusion map, exported the completed asset, re-imported both GLBs, and packaged the submission.

01 / RECEIVE

Asset Intake

Accepted a GLB and editable Blender source. Recorded the requested map size and return package.

02 / PROCESS

UV + AO Bake

Validated one UV layer, created a shared atlas, then ran a real ambient-occlusion bake with a 16-pixel margin.

03 / VERIFY

Visual + Structural QA

Rendered intake/completed states, exported the UV proof, checked AO variation, and re-imported both GLBs.

04 / SUBMIT

Files + Evidence

Returned the AO PNG, completed GLB, editable source, manifest, proof renders, and one ZIP.

Before / Completed

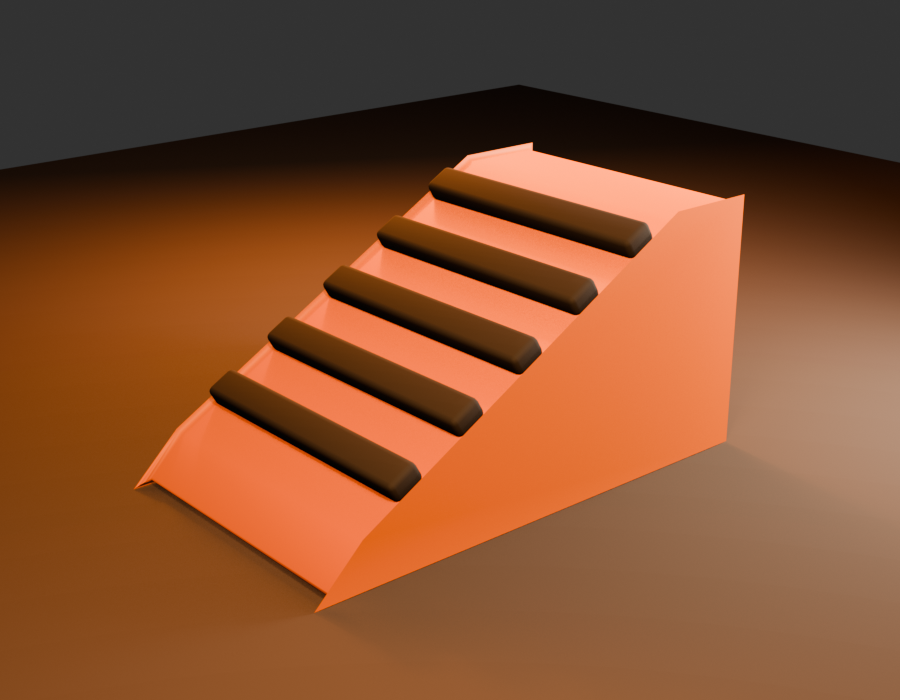

Received wheel chock asset render
Received AssetRepresentative user input before AO processing.

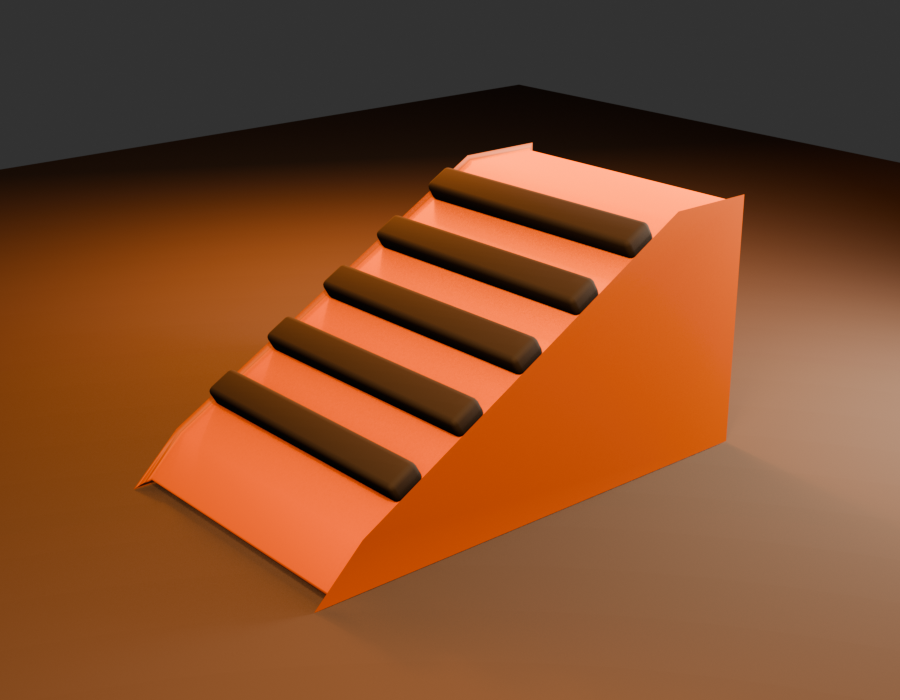

Completed wheel chock with ambient occlusion applied
Completed AssetSubtle AO deepens tread contacts, lower edges, and ground contact without blackening the asset.

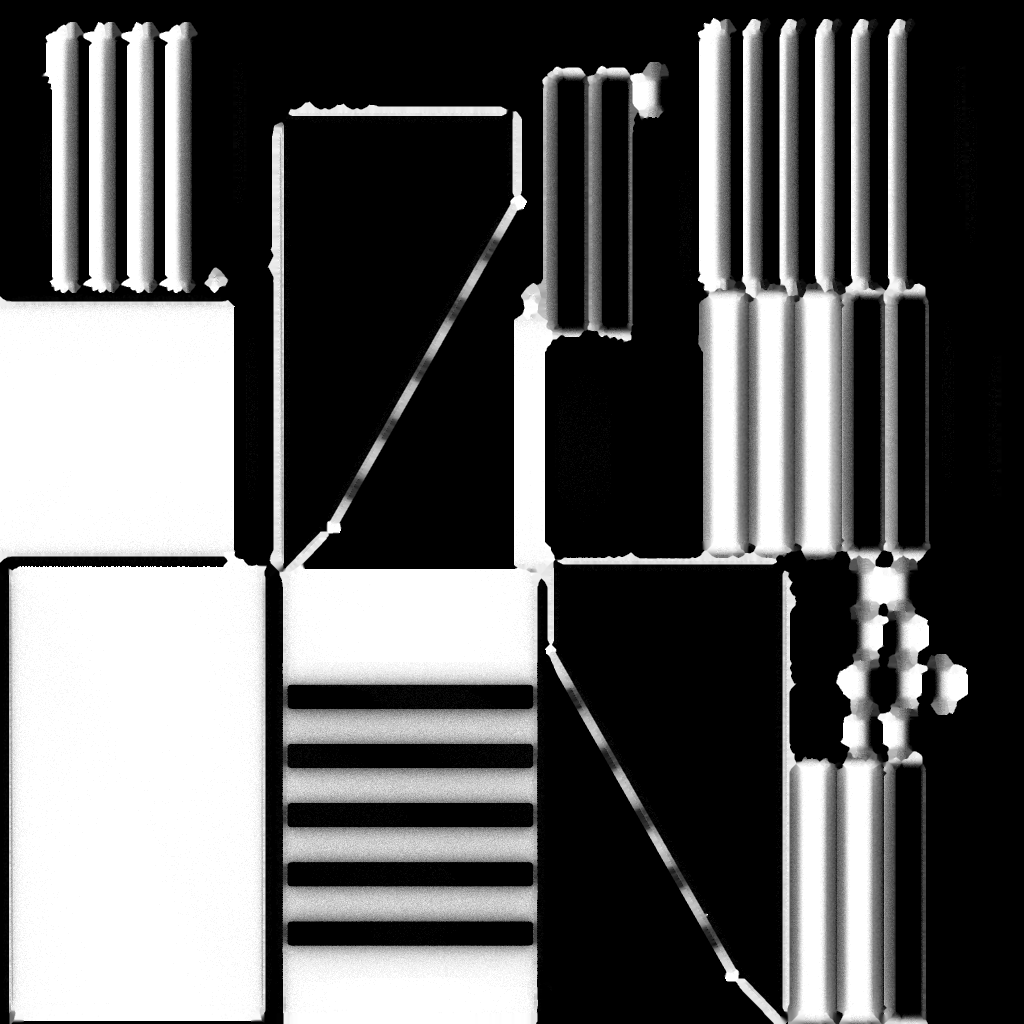

Generated 1024 ambient occlusion texture
Actual AO Bake1024×1024 PNG with measured grayscale variation—not a mocked texture.

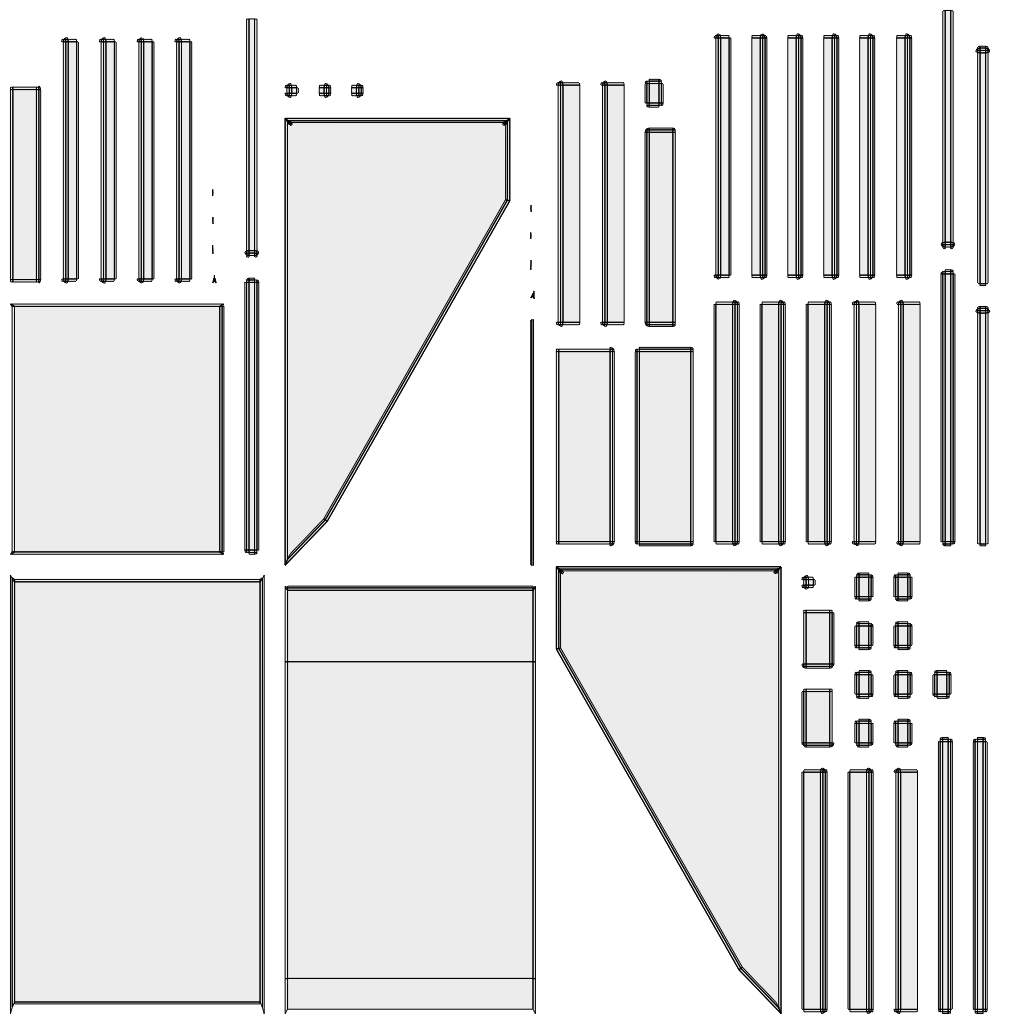

UV atlas layout proof
UV Layout ProofNon-empty packed atlas with visible island padding and no obvious overlap.
1,676Imported triangles
1Mesh object
2Materials
1UV layer
1024²AO resolution
16 pxBake margin

Submission Files

Complete assignment packageZIP / source + output + evidence + manifest
Download ZIP
Ambient-occlusion mapPNG / 1024 × 1024 / grayscale
Download AO
Completed real-time assetGLB / verified re-import
Download GLB
Received source assetGLB / preserved for comparison
Download Source
Download Full Submission

Verification Results

  • PASS AO PNG is 1024×1024 and non-empty.
  • PASS AO values span 0.0–1.0 with meaningful variation.
  • PASS UV proof contains packed, separated islands.
  • PASS Source GLB re-imported: 1 object, 1,676 triangles.
  • PASS Completed GLB re-imported with matching structure.
  • PASS ZIP integrity check found no errors.
